How to Install LED Strip Lights? Step-by-Step Professional Installation Guide 2026

What is an LED Strip?

An LED strip is a lighting product consisting of LEDs arranged on a flexible PCB, which can be easily applied to any surface thanks to its adhesive backing. It is used in countless areas such as under kitchen cabinets, ceiling coves, behind TVs, stairs, and gardens.

Types of LED Strips

Transformer (Power Supply) Selection

An LED strip cannot be plugged directly into the wall! An appropriate transformer is absolutely necessary.

Voltage Selection

• 12V: Short distances (up to 5m), home use
• 24V: Long distances (10m+), less voltage drop

Power Calculation

Transformer Power = Strip W/m x Total Meters x 1.2 (20 percent margin)

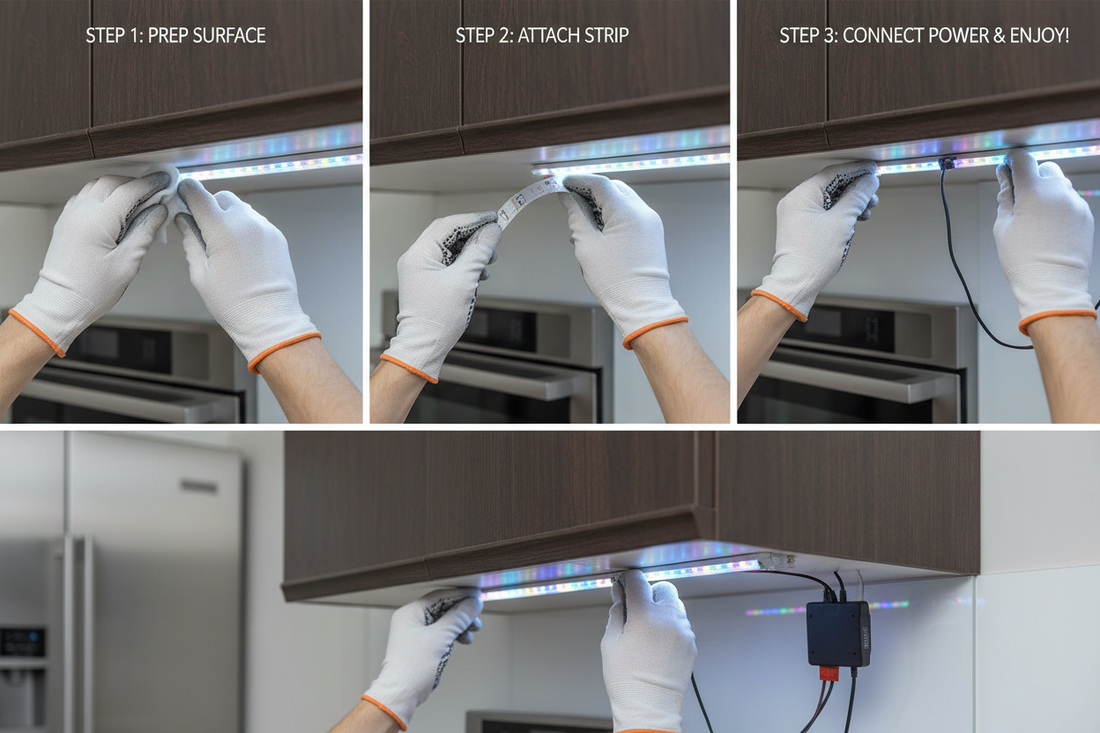

Step-by-Step Installation Guide

Required Materials

• LED strip (type suitable for your needs)
• Transformer (20 percent more than calculated power)
• Aluminum profile (optional, recommended for heat dissipation)
• Connection clips or solder
• Scissors or cutter

Step 1: Measurement and Planning

Measure the area to be applied. Consider that connection clips or soldering will be required for corners.

Step 2: Surface Preparation

The surface must be clean, dry, and grease-free for the adhesive to stick. Wipe with an alcohol wipe.

Step 3: Cutting

The LED strip should only be cut at the cutting points (marked with scissors). If cut in the wrong place, that section will not work.

Step 4: Profile Placement (If Applicable)

The aluminum profile is mounted with screws or adhesive. The strip is placed in the profile, and the cover is attached.

Step 5: Connection

The + and - cables at the end of the strip are connected to the output of the transformer. Pay attention to polarity!

Step 6: Test

Plug the transformer into the outlet and test the strip. If there are no issues, remove the adhesive and stick it.

Areas of Use

Common Mistakes

• ❌ Underestimating transformer power — overheating and malfunction
• ❌ Cutting in the wrong place — that section won't work
• ❌ Mixing up polarity — strip won't light up but won't work
• ❌ Not using a profile — heat buildup, short lifespan
• ❌ Using IP20 outdoors — water damage
• ❌ Connecting a 12V strip to a 24V transformer — immediate malfunction

FAQ

How long do LED strips last?
Quality strips last 30,000-50,000 hours. With 8 hours of daily use, that's 10+ years.

Can a dimmer be added?
Yes. PWM dimmers are used for single-color strips, and RGB controllers for RGB strips.

Is it possible to extend?
Yes, it can be extended with connection clips. However, do not exceed the 5m limit for 12V strips and 10m for 24V strips.

Is an aluminum profile essential?
Not essential but recommended. It dissipates heat, extends lifespan, and provides an aesthetic look.

What is needed for an RGB strip?
RGB transformer + RGB controller (remote control or app).

Which strip for the bathroom?
Choose a minimum IP44, CRI 90+, and CCT adjustable model.

Conclusion

LED strip installation can be easily done at home with the right materials and steps. The most important points are correct transformer selection and attention to cutting points.

• Correct transformer = long lifespan
• Use profile = aesthetic + durability
• Pay attention to IP class = trouble-free outdoors
